Introduction

Use a Number node to collect numeric input.

A Number node allows you to enter whole numbers or decimal values. Use it when the input must be numeric and follow a defined range.

Add a Number node

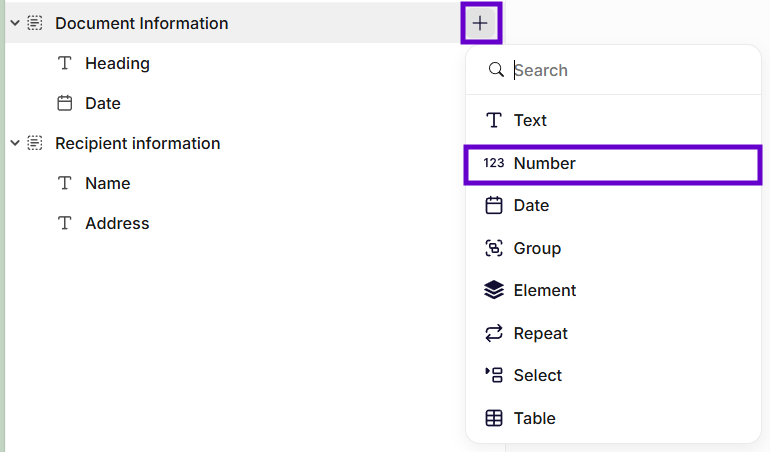

To add a Number node, click the plus (+) icon in the Information Tree and select Number.

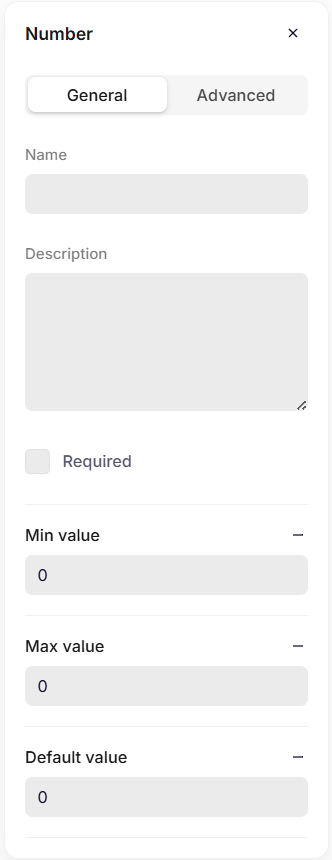

General settings

Name
Enter a clear name. This label appears in the Information Tree and helps you identify the field.

Description
Add a short description to explain what should be entered.

Required
Enable this option to make the field mandatory. The user creating the document must enter a value before you can continue.

Min value
Set the lowest number allowed. The system does not accept values below this limit.

Max value
Set the highest number allowed. The system does not accept values above this limit.

Default value
Enter a number that pre-fills the field. The user creating the document can change or remove it later.

Advanced settings

Key
The key automatically inherits the Name you enter in the General settings. If needed, you can change it and define a unique key for the node.

The system uses the key to reference this field in the data structure and in templates.

Use a clear and consistent naming pattern. For example: itemCount or totalAmount.

Do not use spaces or special characters. Use letters only.

Format numbers in the template

After you insert a Number node into the template, you can control how the number appears in the output.

Select the node in the template and choose a Format option.

None
Displays the number exactly as entered.

Integer
Displays the value as a whole number. Decimal values are removed.

Custom format
Lets you define your own number format code. This gives you full control over how the number appears in the output.

Common custom number formats

You can use custom number format codes to control how numbers appear in the output.
The table below shows some common formats and how they affect the displayed value.

Format code	Example input	Output (en-US)	Description
`0`	25	25	Displays a number without thousands separators.
`0000`	25	0025	Pads the number with leading zeros.
`#,##0`	12345	12,345	Adds thousands separators.
`#,##0.00`	12345.6	12,345.60	Displays two decimal places.
`#,##0;-#,##0`	-12345	-12,345	Defines formatting for positive and negative numbers.
`#,##0;(#,##0)`	-12345	(12,345)	Displays negative numbers in parentheses.
`0.##`	12.5	12.5	Shows decimals only when needed.
`0.00`	12.5	12.50	Always shows two decimal places.
`#,##0%`	0.25	25%	Displays the number as a percentage.
`0.00 "kg"`	5	5.00 kg	Adds text after the number.

Notes

0 shows a required digit.
# shows an optional digit.
, adds a thousands separator.
. defines the decimal separator (depends on the selected culture).
; separates formats for positive, negative, zero, and text values.

Culture

The Culture setting controls how numbers are displayed based on regional formatting rules.

Different cultures use different decimal separators and thousands separators.

For example, the same number formatted with #,##0.00 may appear differently depending on the selected culture.

Culture	Output
English (US)	1,234.56
German (DE)	1.234,56
Danish (DK)	1.234,56

In this example:

English uses , as the thousands separator and . as the decimal separator.
German and Danish use . as the thousands separator and , as the decimal separator.

Choose the culture that matches the formatting rules of your document or audience.
